Reverse Engineering & Optical Scanning
Metallurgical Decoding and Microstructural Analysis
We perform advanced laboratory analysis and microscopic examination of the alloy's crystal structure and chemical composition to uncover the core mechanical properties of the original part. This protocol evaluates phase transformations, grain size, graphite nodularity, and grain-boundary chemistry to prevent embrittlement and stress corrosion.

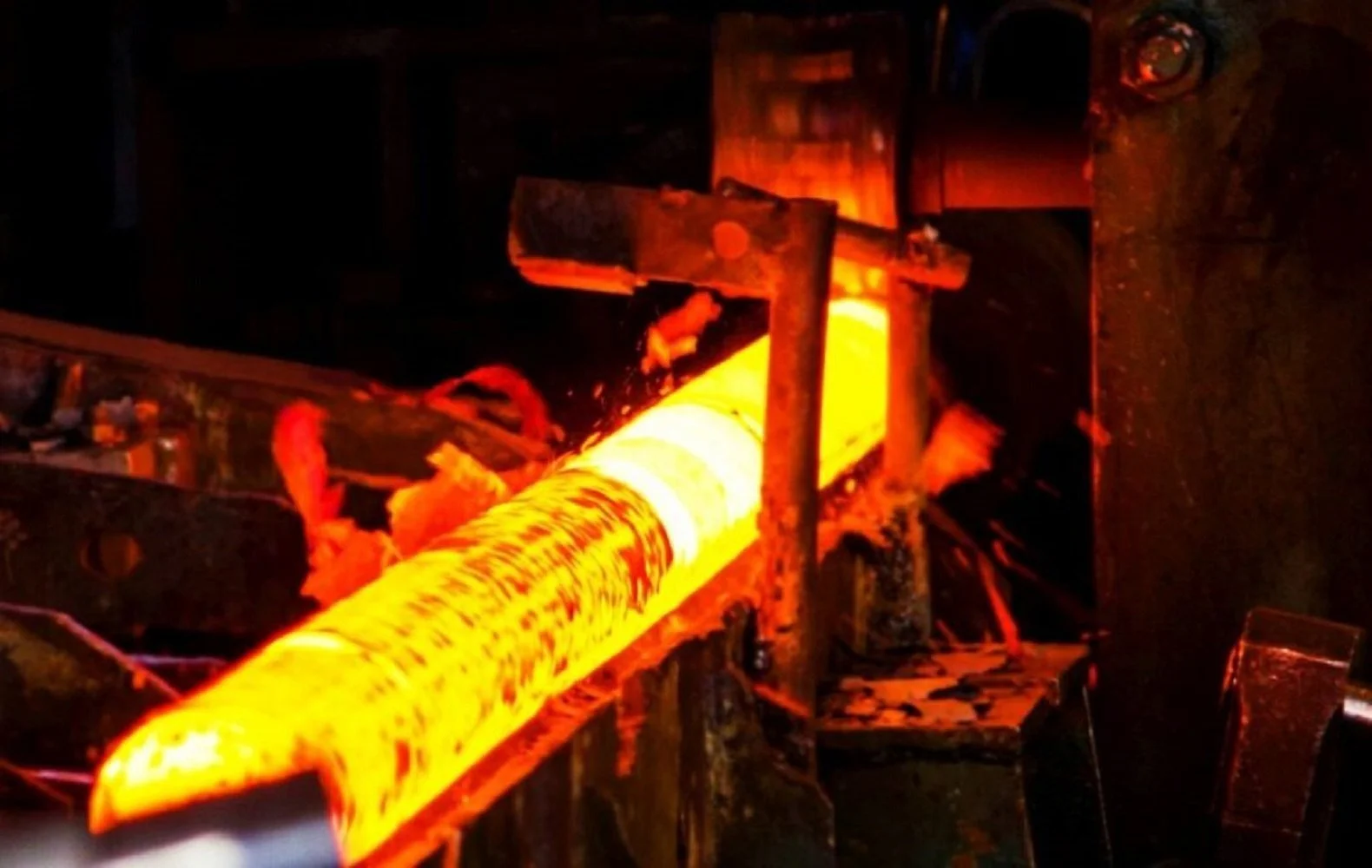

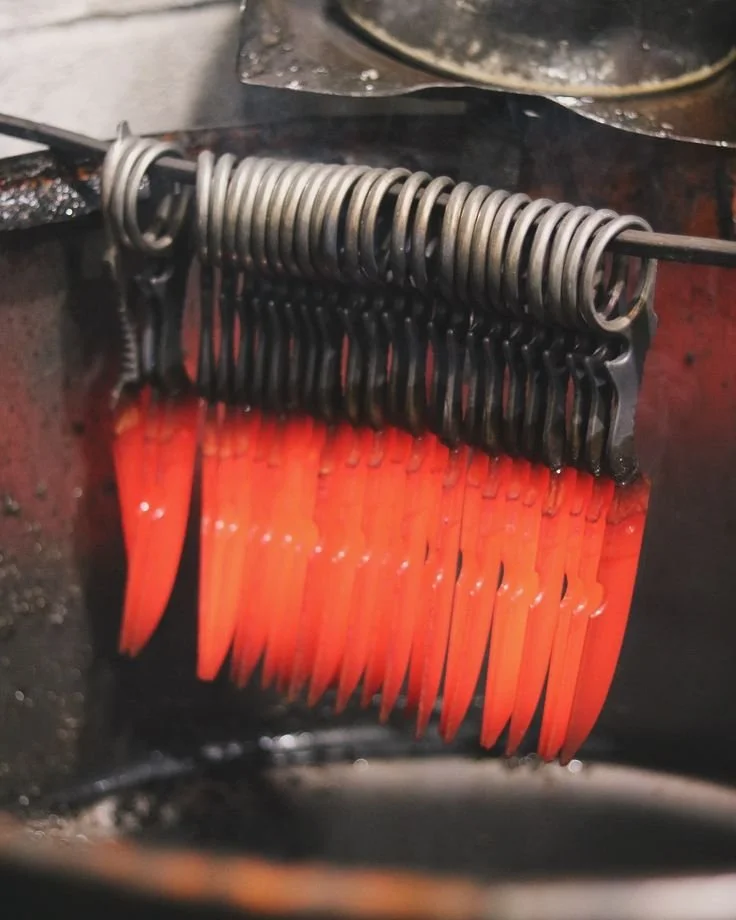

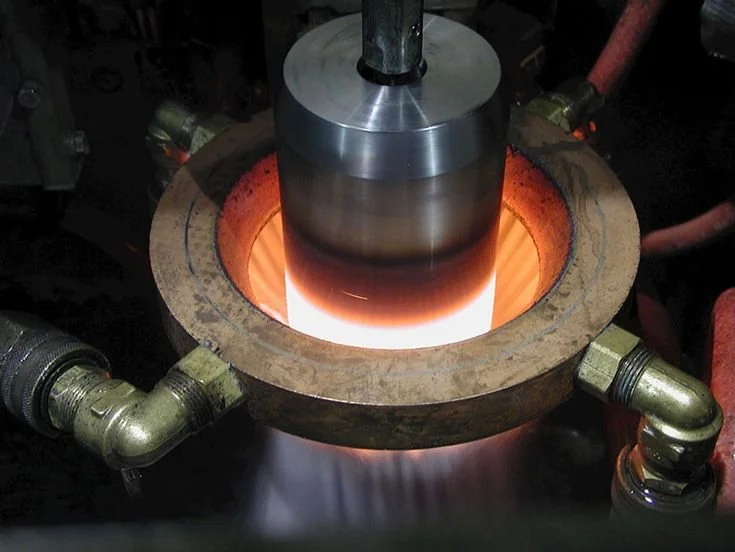

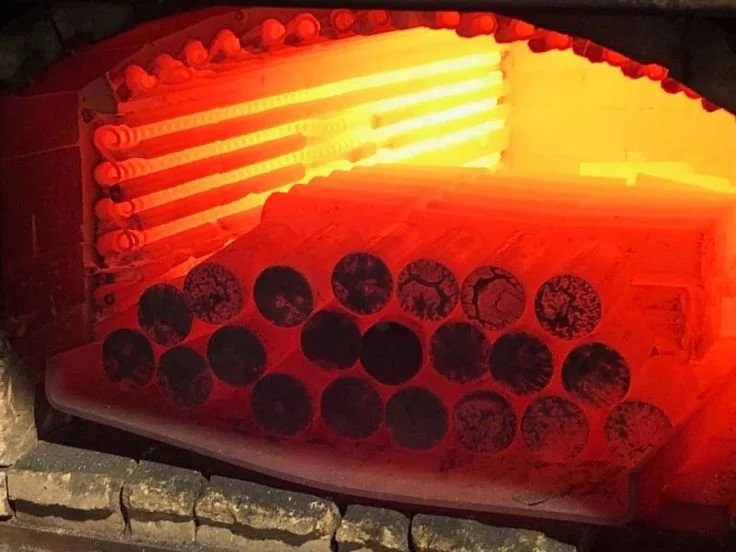

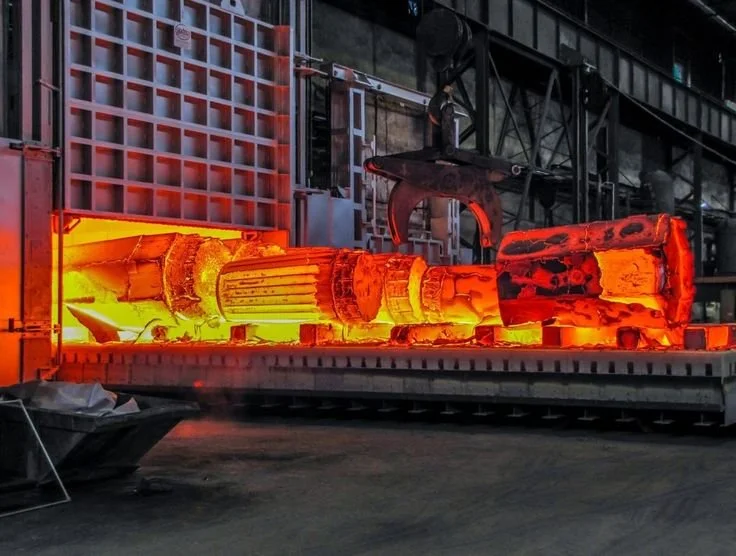

By decoding the material’s thermal history with absolute precision, we structurally re-engineer the component using customized heat treatments (quenching, annealing, tempering). This upgrades its mechanical properties, ensuring the new part outperforms the original under cyclic loading, heavy dynamic stress, and severe, abrasive environments.
3D Laser & Optical Scanning
We capture physical geometric profiles and dimensions using advanced, non-contact, high-precision scanning devices, completely eliminating human error and deviations associated with manual measurement:
Micro-Accurate Volumetric Capturing:
Our non-contact scanning systems generate high-density point clouds, enabling the acquisition of complex 3D profiles, intricate casting curvatures, and internal cavities with exceptional, micrometer-level precision.
Deformation and Wear Mapping:
By superimposing high-resolution scans of worn or damaged components onto their original nominal dimensions, we accurately identify and map the precise locations of erosive wear, material loss, and plastic deformation.
Why Partner with Us?
Metallurgical Advancement over Copying
We don't just copy shapes; we analyze the alloy's chemical and crystal structure to decode its thermal history. This lets us re-engineer the material and upgrade its properties via tailored heat treatments, ensuring the new part outperforms the original in durability and wear resistance.
Metrological & Digital Precision
We eliminate manual errors by combining high-density optical/laser scanning with precision Coordinate Measuring Machines (CMM). This synergy captures complex curves and internal cavities with extreme accuracy, guaranteeing perfect alignment and seamless installation.
Rectifying Design Flaws
We analyze how the legacy part failed to identify its weak points. Using advanced reverse engineering software, we reconstruct the model to correct design defects, adjust tolerances, and optimize reinforcement ribbing—giving the new component a longer lifespan and more stable performance.
Digital Transformation & Advanced Parametric Modeling
We convert high-density point clouds and optical scans into ultra-precise 3D parametric models using advanced reverse engineering software. This protocol goes beyond replicating outer surfaces; it reconstructs complex geometric relationships, determines centers of gravity, and applies strict GD&T standards.
This digital transformation allows us to analyze the virtual model to correct original design flaws, structural deformations, and axial asymmetry caused by operational wear. By re-engineering diameters, fluid channels, and reinforcement ribs, we optimize stress distribution and prevent stress concentration. This ensures the component is fully optimized for multi-axis CNC machining, guaranteeing seamless integration into your heavy industrial system with zero field modifications.
